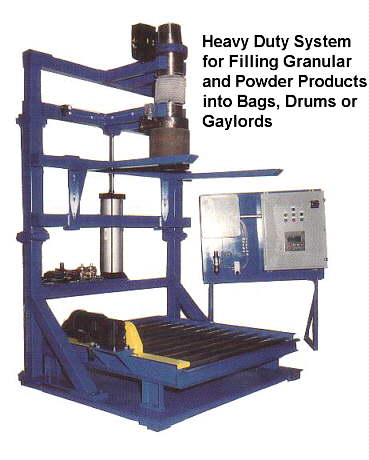

Intermediate Bulk Container Filling Station

Model IBC


Shown with optional
POWER ROLLER CONVEYOR

Advanced Technology weigh / fill systems

The IBC solved the problem of transporting dry, flowable We offer manual, semi-automatic, automated and custom materials in bulk. Now Arcopak solves the problem installations. Since the range of materials and operating of accurately filling and weighing the IBC. conditions of industry is so varied, we normally tailor the IBC Filling Station to suit the specifications of our customers. Our advanced design can be as simple or sophisticated as your materials handling needs. Our high performance scale is a powerful, computer-compatible building block for larger systems.

Standard features include:
  • Heavy duty steel construction.
  • Pneumatically operated bag supports.
  • Inflatable filling spout collar to reduce dust.
  • 5' X 5' scale platform mounted directly on load cell collection or process control systems for more accurate weighing.
  • Adjustable - handles any size and type of bag.
  • Operates from 110V single phase power supply.
  • Operates from 80 psi compressed air supply.

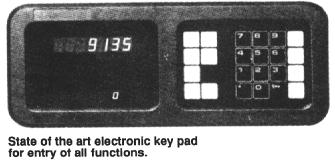

  • Electronic weighing with digital read-outs.
  • Weight mode selector programmable in lbs. or Kgs.
  • Keyboard tare entry and auto tare with continuous, tare display.
  • Set point program for fast and slow feed rates.
  • Interface capability
Options:
  • IBC inflator.
  • Conveyorized or automated systems.
  • Vibrator system for product settling.
  • Modules to expand equipment for use in data.
  • Set point program for 8 cut offs.
  • Pallet dispenser.
